D90 Series Nano Ceramic Film
A practical nano ceramic series for wholesale channels needing clear heat rejection data and a 5-year value route. This series supports B2B product review, datasheet comparison, sample selection and direct inquiry.
Complete Series Shade / Color Wall
All model options are integrated from the supplied BAOYU series data. Buyers can compare VLT, shade depth, UVR, IR rejection, TSER and application direction before requesting physical samples.
D-35
VLT 34.9% · UVR 99.1% · IRR 950nm 90.1% · IRR 1400nm 91.2% · TSER 56.1% · HAZE 0.78
Value Nano Ceramic Route
D90系列 纳米陶瓷. Built from the supplied BAOYU technical sheet and organized for global distributors, tint shops, wholesalers and private label buyers.
Heat Rejection Story
Use IRR, SIRR and TSER data to explain heat-control performance in customer-facing sales materials.
VLT Model Range
Model choices support front windshield, side window, rear window and privacy route planning.
Private Label Ready
Suitable for roll labels, cartons, sample books and distributor product-line naming.
Warranty Position
5 Years warranty positioning with coverage for no bubbling, no peeling and no fading.

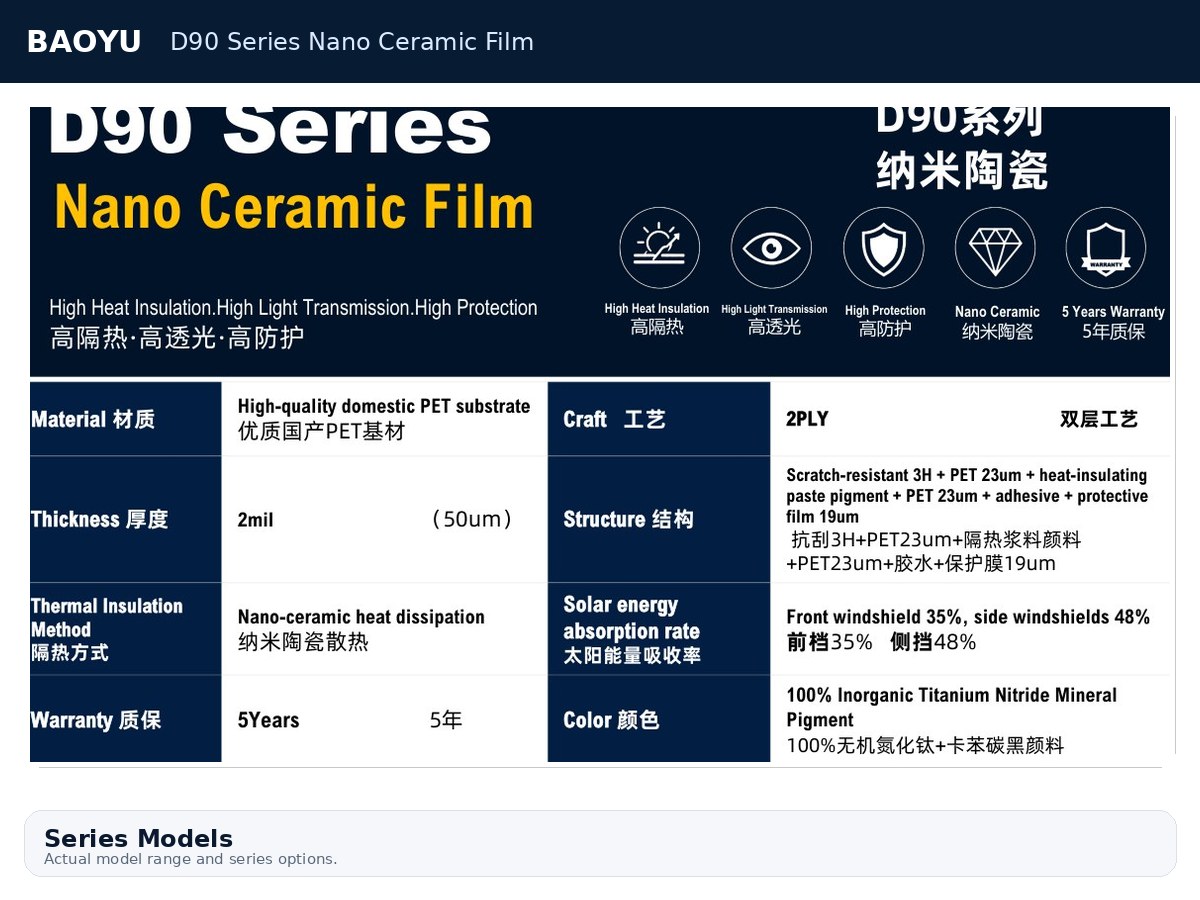

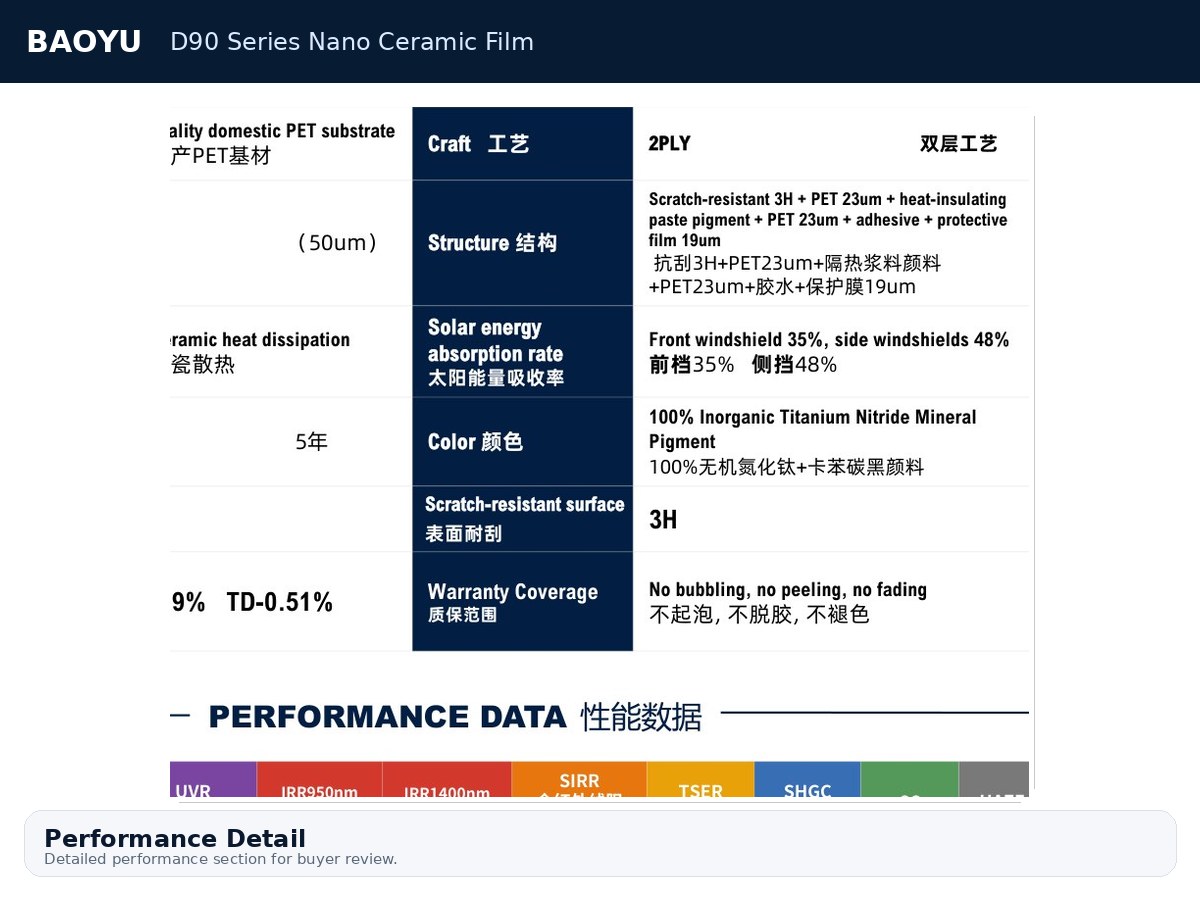

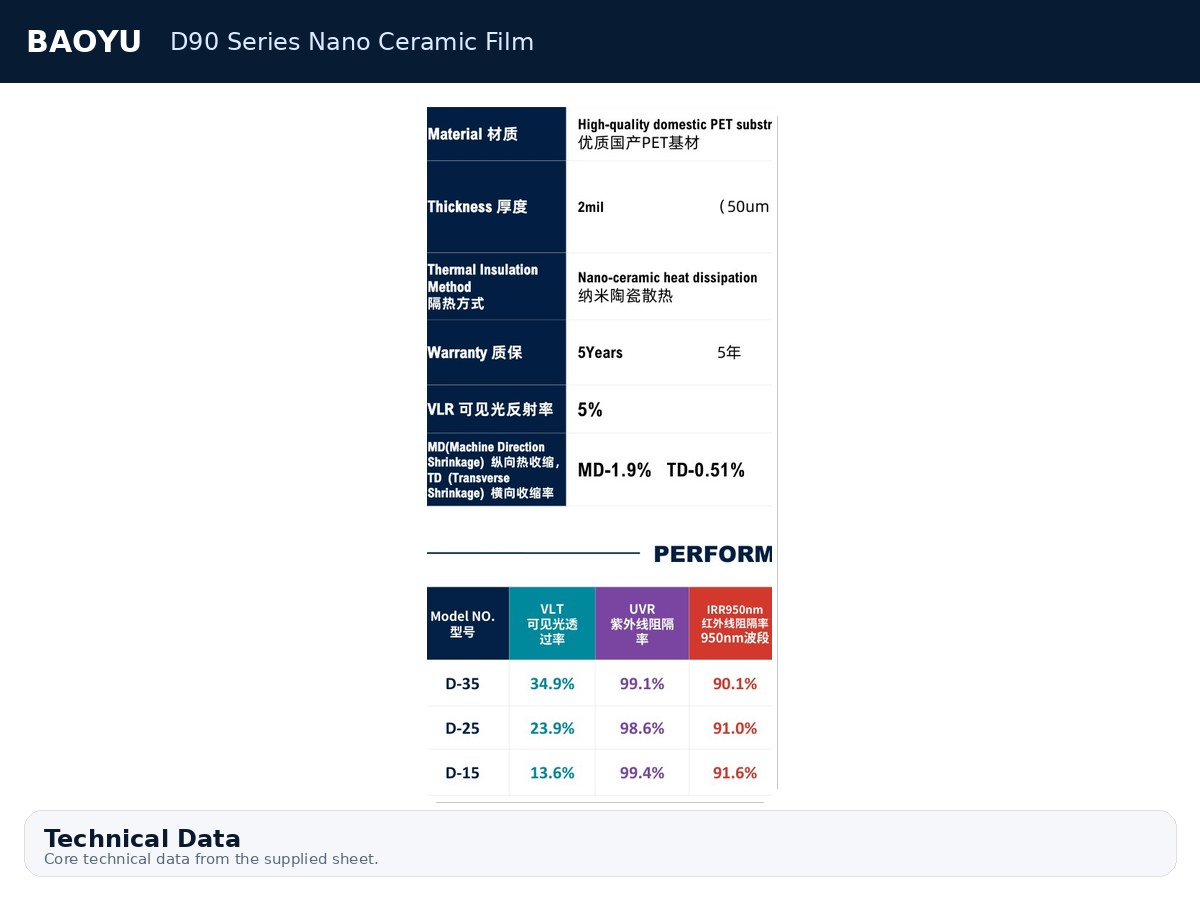

Technical Structure
Core technical information from the supplied D90 product sheet.
Craft

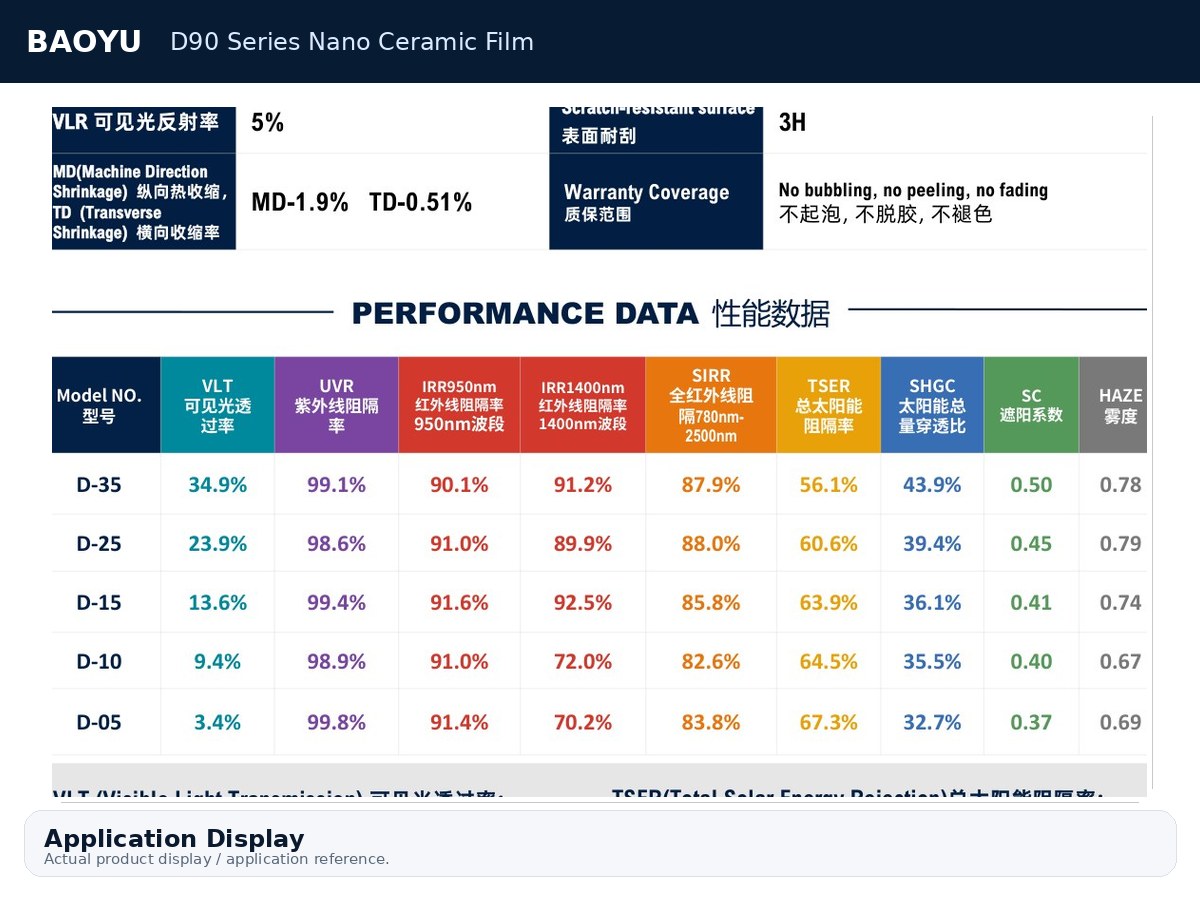

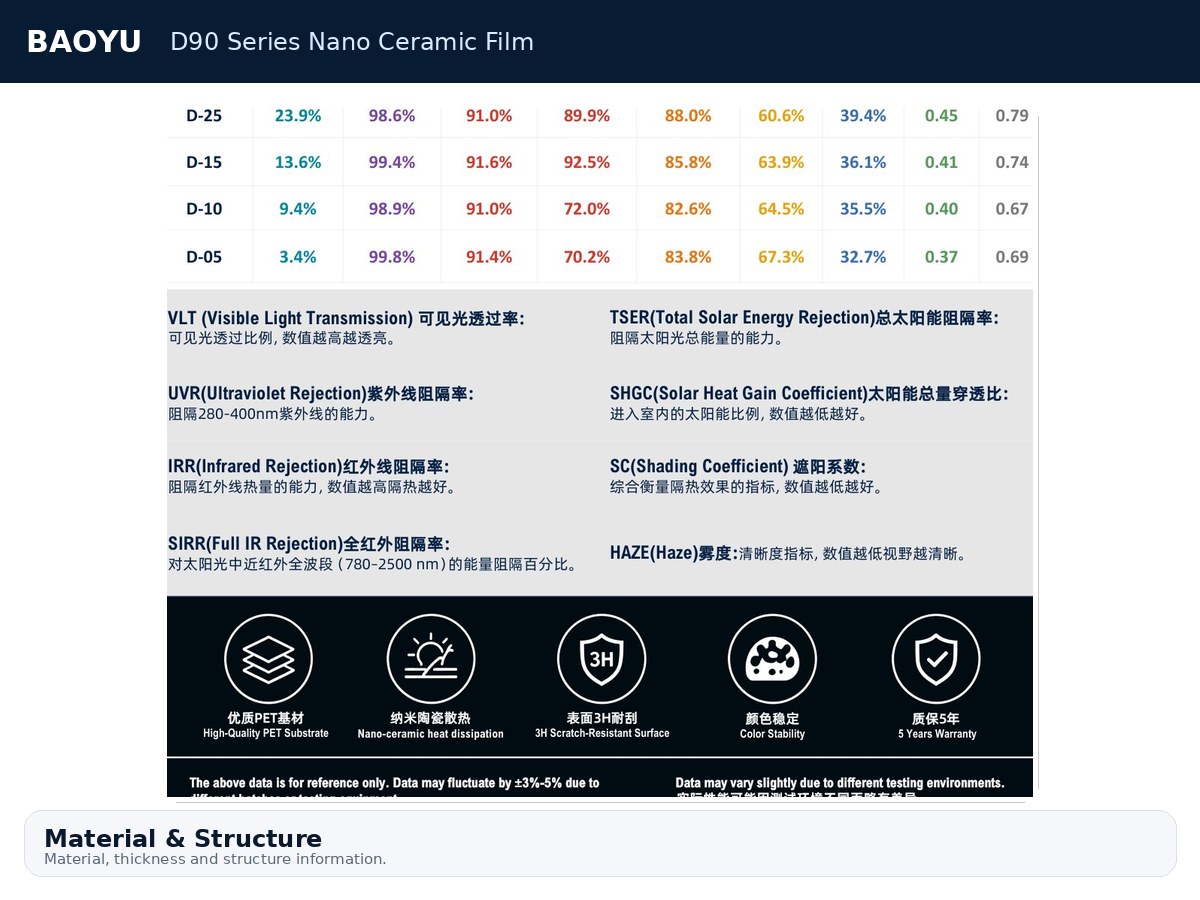

D90 Performance Data

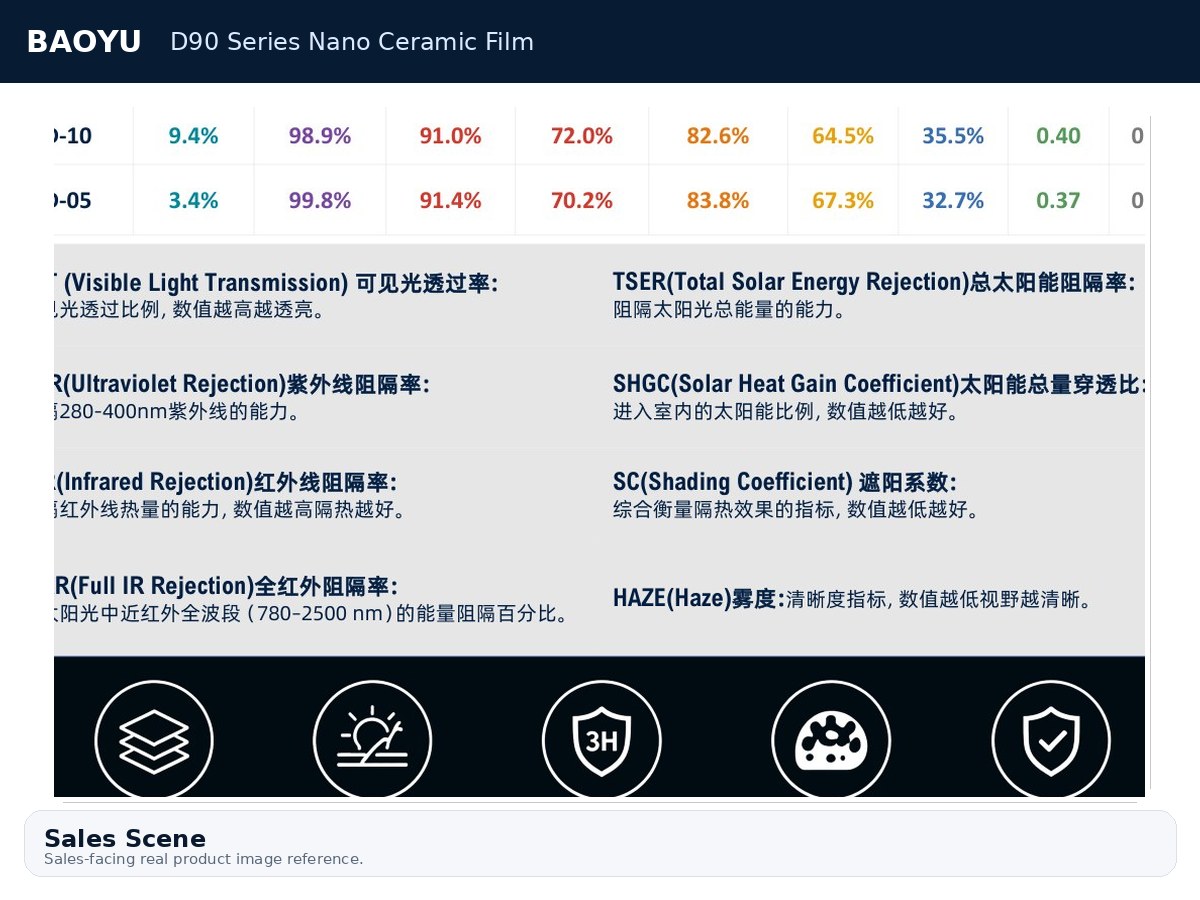

Complete model data including VLT, UVR, IRR, SIRR, TSER, SHGC, SC and HAZE.
| Model No. | VLT | UVR | IRR 950nm | IRR 1400nm | SIRR | TSER | SHGC | SC | HAZE |
|---|---|---|---|---|---|---|---|---|---|
| D-35 | 34.9% | 99.1% | 90.1% | 91.2% | 87.9% | 56.1% | 43.9% | 0.50 | 0.78 |
| D-25 | 23.9% | 98.6% | 91.0% | 89.9% | 88.0% | 60.6% | 39.4% | 0.45 | 0.79 |
| D-15 | 13.6% | 99.4% | 91.6% | 92.5% | 85.8% | 63.9% | 36.1% | 0.41 | 0.74 |
| D-10 | 9.4% | 98.9% | 91.0% | 72.0% | 82.6% | 64.5% | 35.5% | 0.40 | 0.67 |
| D-05 | 3.4% | 99.8% | 91.4% | 70.2% | 83.8% | 67.3% | 32.7% | 0.37 | 0.69 |
Recommended Use by Model
This table helps customers choose front windshield, side window, rear window and privacy options faster.
| Model | Recommended Position | Sales Logic |
|---|---|---|
| D-35 | Side window / privacy balance | Medium to dark shade for privacy and heat control. |
| D-25 | Side window / privacy balance | Medium to dark shade for privacy and heat control. |
| D-15 | Rear / high privacy route | Deep shade for privacy-sensitive side and rear window markets. |
| D-10 | Rear / high privacy route | Deep shade for privacy-sensitive side and rear window markets. |
| D-05 | Rear / high privacy route | Deep shade for privacy-sensitive side and rear window markets. |
Use D90 for Catalog, Sample Book and Quote Follow-up
Download the technical sheet, compare model data and send your target country, VLT preference, quantity and packaging requirements.
Request D90 Samples, Roll Price or Private Label Plan
Tell us your market, preferred VLT models, order quantity and label/carton requirements. BAOYU will recommend the suitable window film route.
